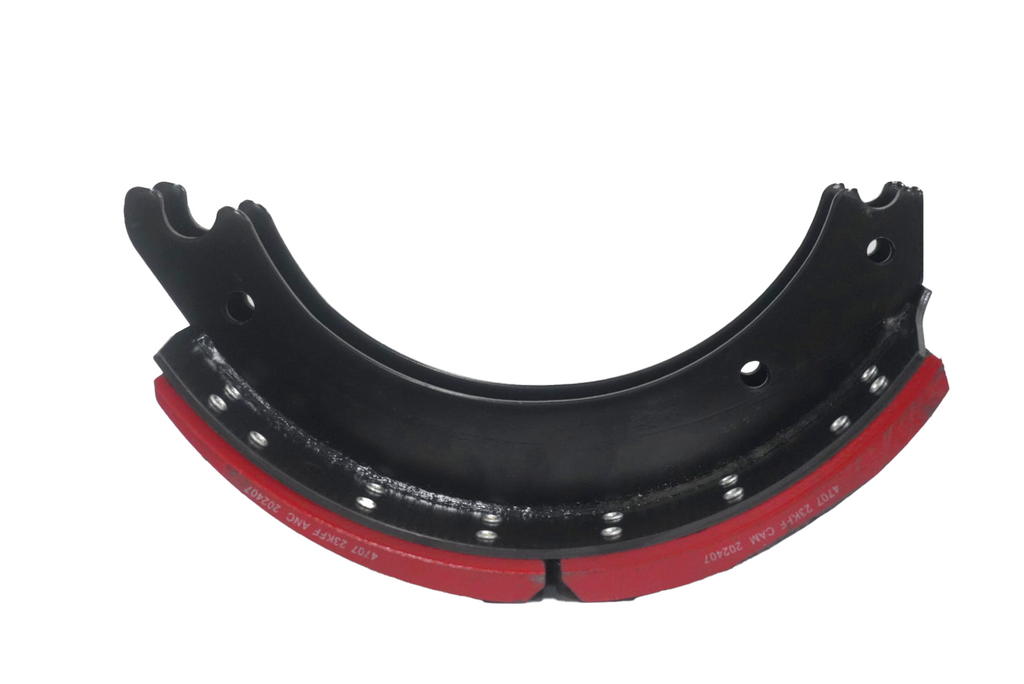

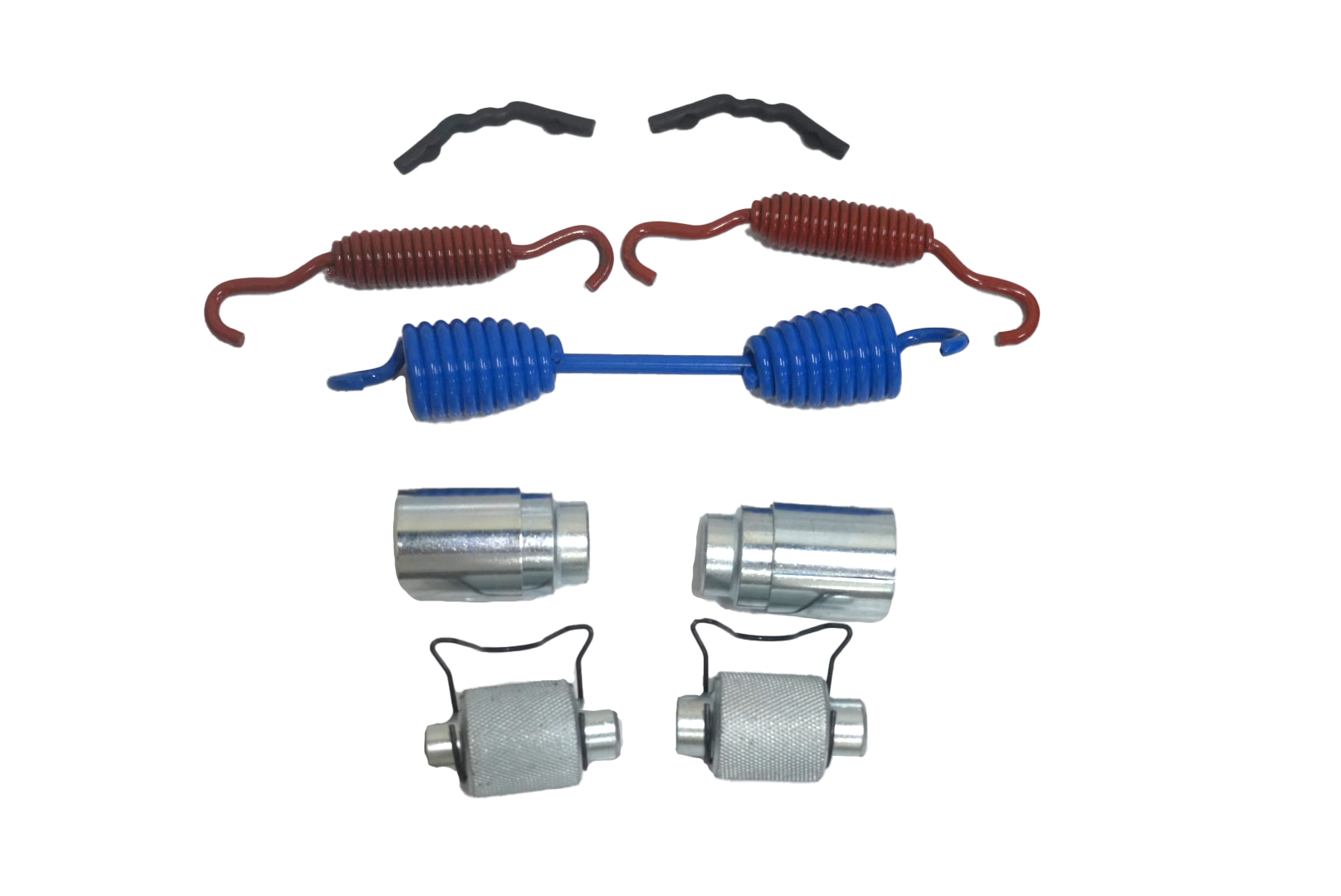

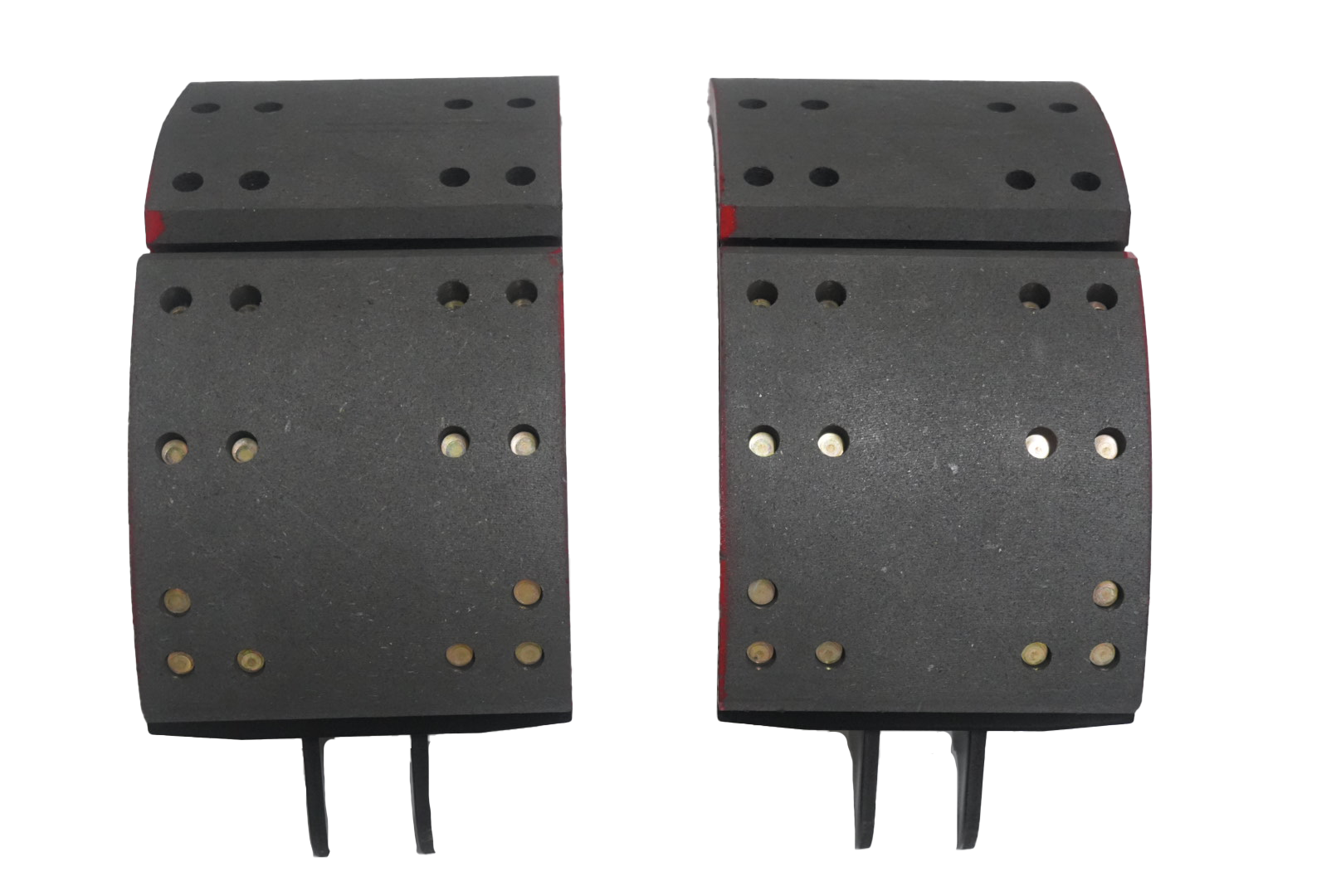

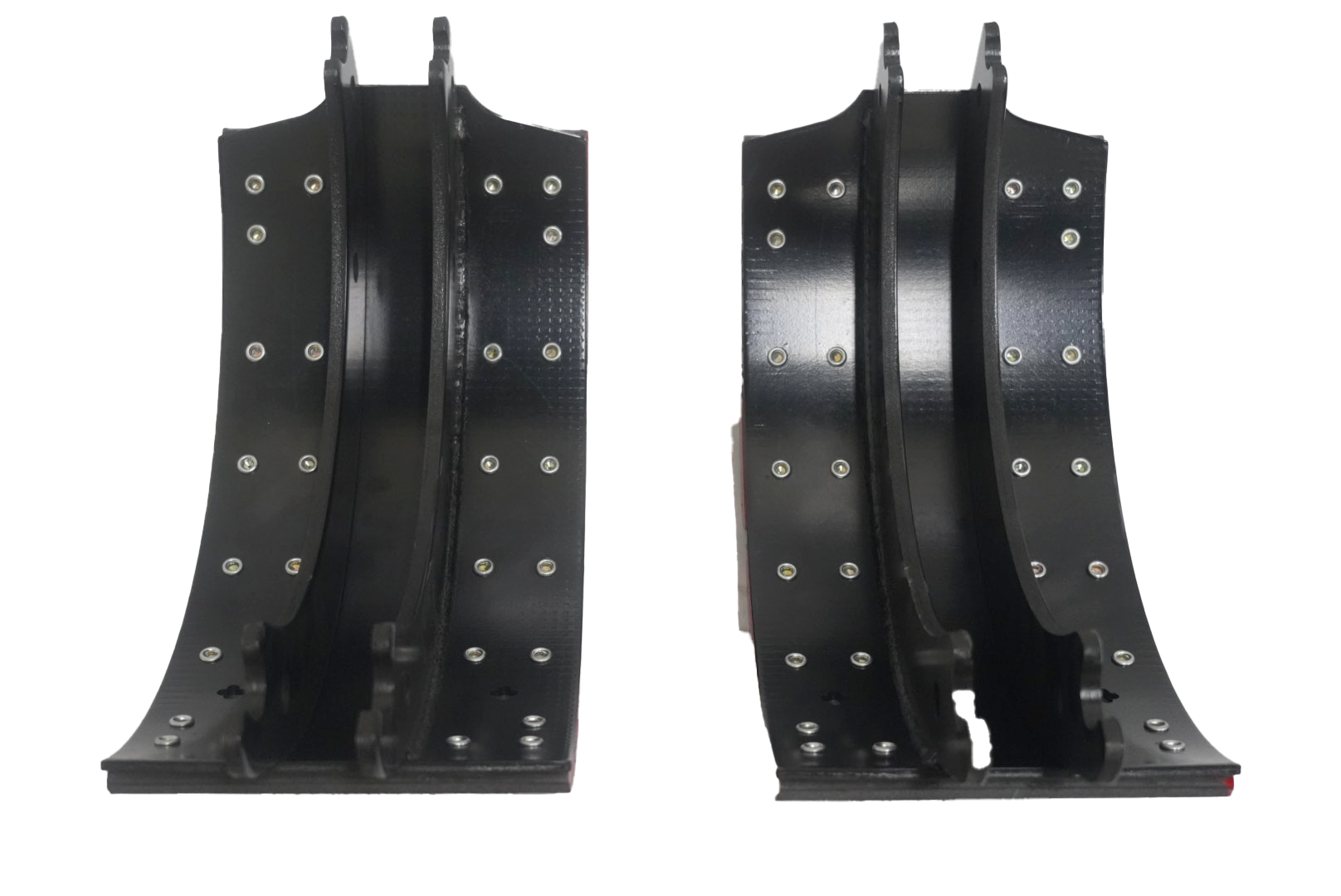

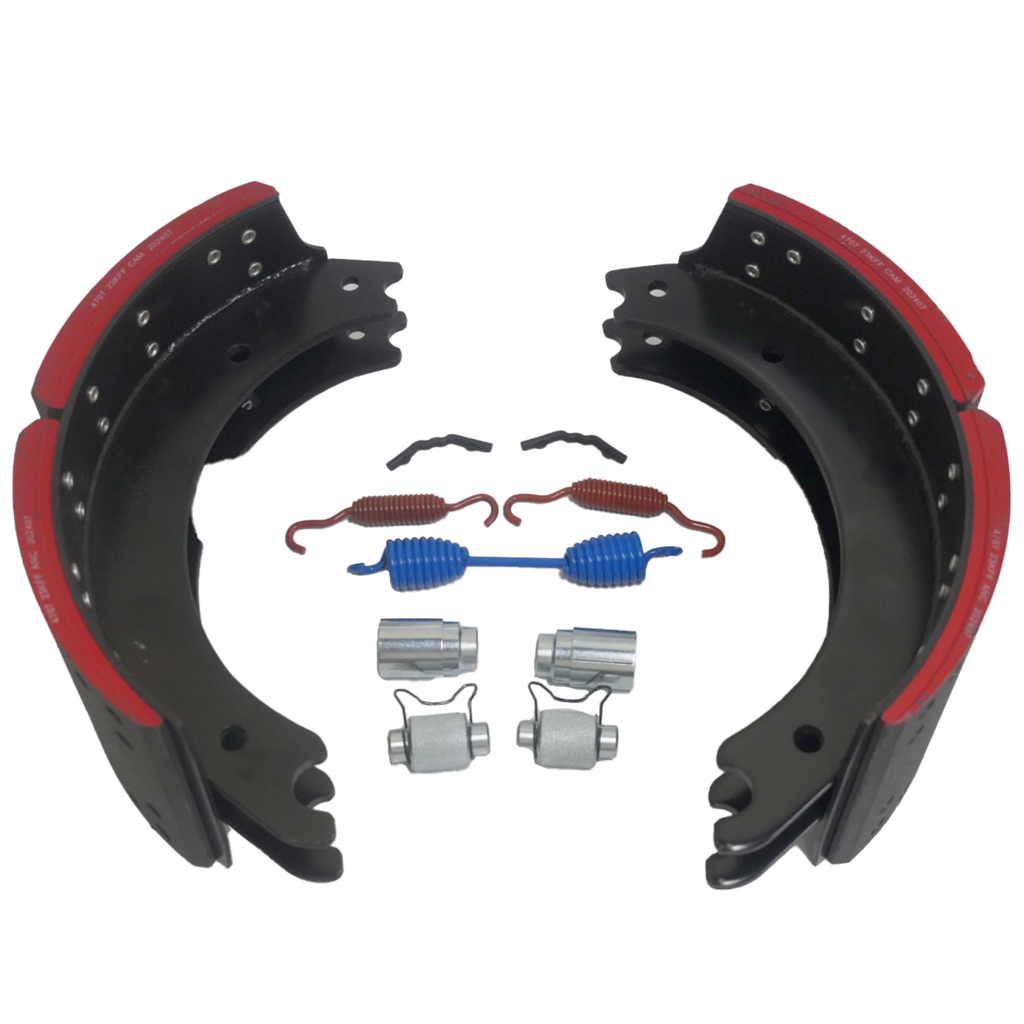

The 4707Q-Plus brake shoe kit is designed for rear drive or trailer axle drum brake system, providing reliable fit and consistent braking performance. Built for heavy-duty truck and trailer drum brake systems, this kit is suitable for commercial and fleet replacement applications.

Specifications

•          FMSI Number: 4707Q-Plus
• GAWR: 23KFF
• Brake Shoe Width: 7 in
• Drum Diameter: 16.5  in
• Brake Shoe Type: Q-Plus
• Certification: FMVSS 121 By LINK
• Replaces OEM#: 4707QP
• New or Relined: New

Key Features

•          23K FF Rated Friction: 23,000 lbs GAWR linings with an FF coefficient for maximum torque and heat stability on heavy-load drive axles.
• FMVSS 121 Certified: Independently validated by LINK Engineering to meet all federal safety standards for commercial vehicles.
• ·Advanced Q-Plus Fit: Precision-engineered for 16.5” x 7” S-Cam "Q-Plus" systems, featuring a reinforced design for extended service life on rear axles.
• Anti-Corrosion Finish: Treated high-grade steel prevents "rust jacking" and protects the shoe against road salt and extreme weather.
• There are zero Core charges, you are not required to return your old cores for a hassle-free transaction!

OEM Cross-References
